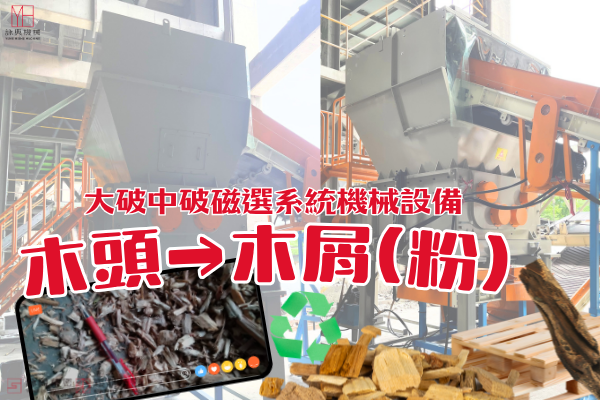

Waste Wood Shredder

Typical Waste Wood Shredding Process

1. Manual Pre-sorting Remove oversized debris and non-wood contaminants before feeding into the shredder.
2. Primary Shredding Reduce wood waste into coarse chips using a Twin-Shaft Shredder or, for bulky or contaminated loads, a Quad-Shaft Shredder.
3. Secondary Size Reduction Achieve desired chip size with a Powerful Crusher or Hammer Mill for finer outputs.
4. Screening & Sizing Separate chips by size using a Hexagonal Drum Screen or a Rectangular Vibrating Screen.
5. Metal Removal Extract nails, screws, and bolts using a Plug-in Magnetic Separator for ferrous metals and an Eddy Current Separator for non-ferrous recovery.
6. Air Separation Remove light contaminants and dust using an Air-Blow Separator; for density-based refinement, apply a Gravity Separator.
7. Final Collection Collect processed wood chips for fuel, recycling, or further manufacturing.

Yung Hsing Advantages in Waste Wood Shredding

• Heavy-Duty Shredders：Engineered for high-torque, low-speed processing of dense or contaminated wood waste.
• Integrated Metal Removal：Built-in separation systems for ferrous and non-ferrous contaminants.
• Flexible Output：Configurable systems for biomass fuel, board manufacturing, or composting feedstock.
• Wear Management：Replaceable blades and wear parts for extended service life.
• Scalable Solutions：From compact units to full-scale processing lines for large facilities.
