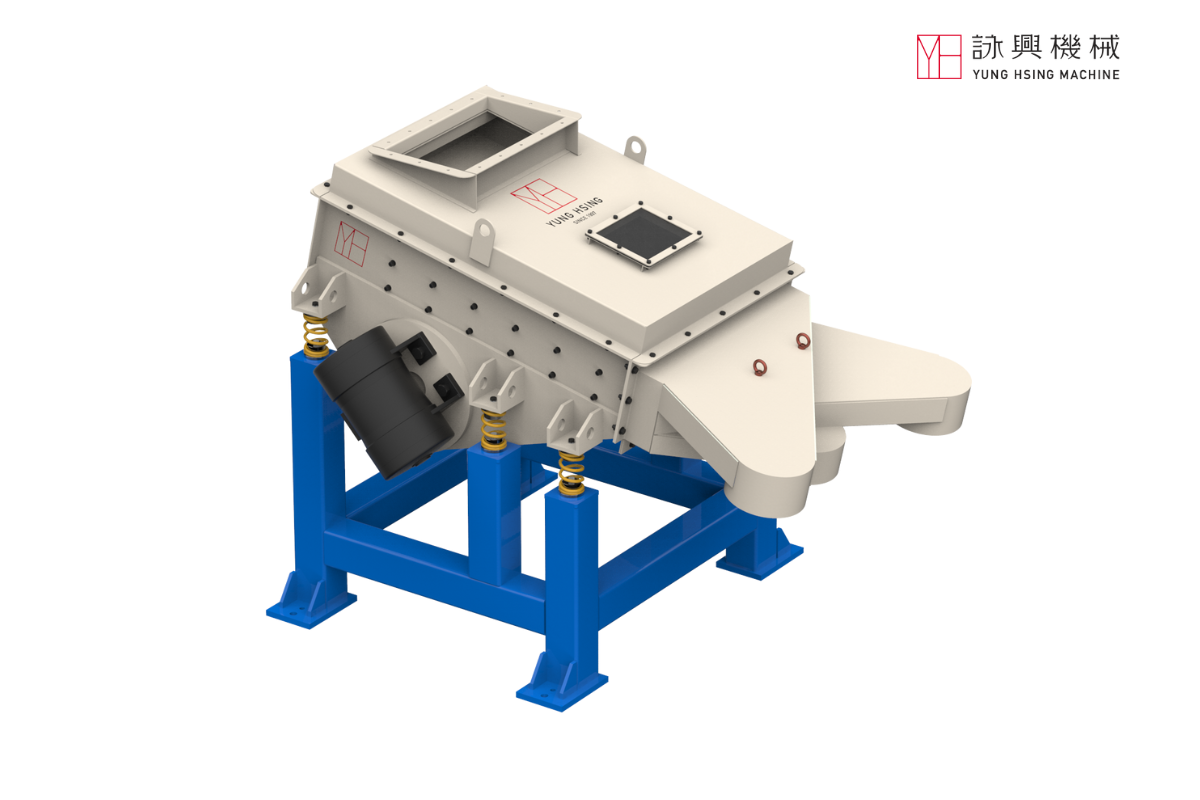

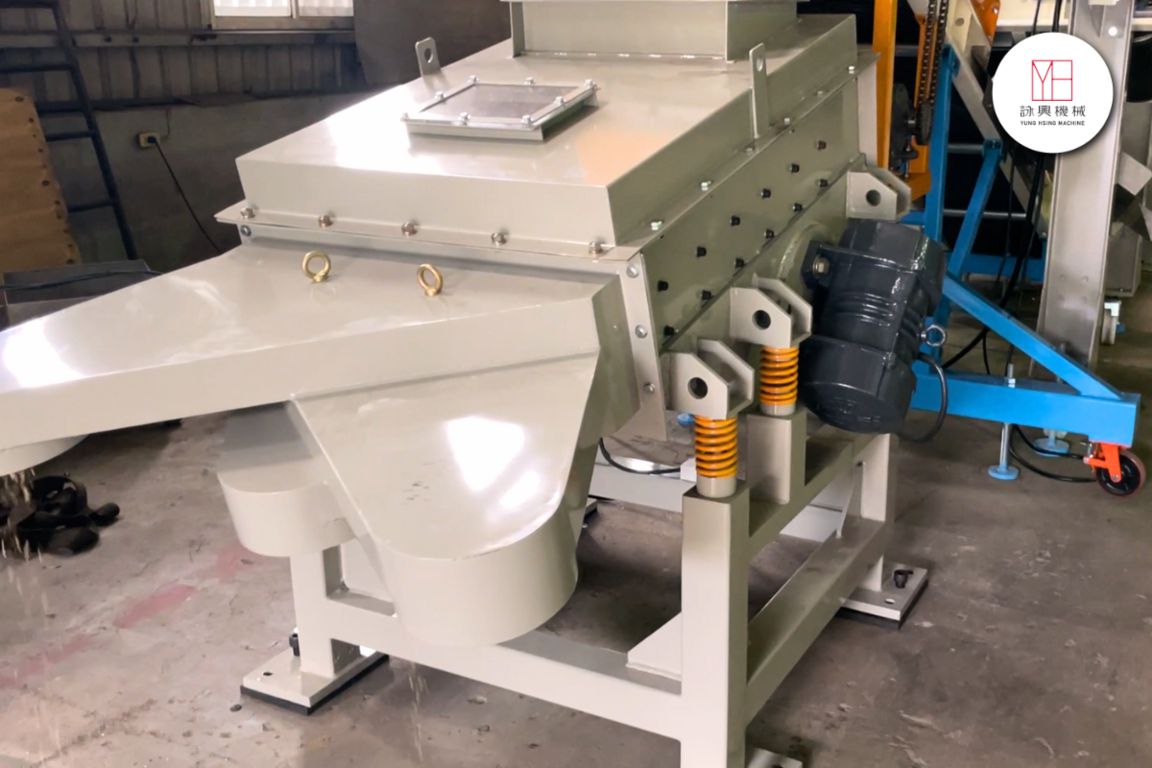

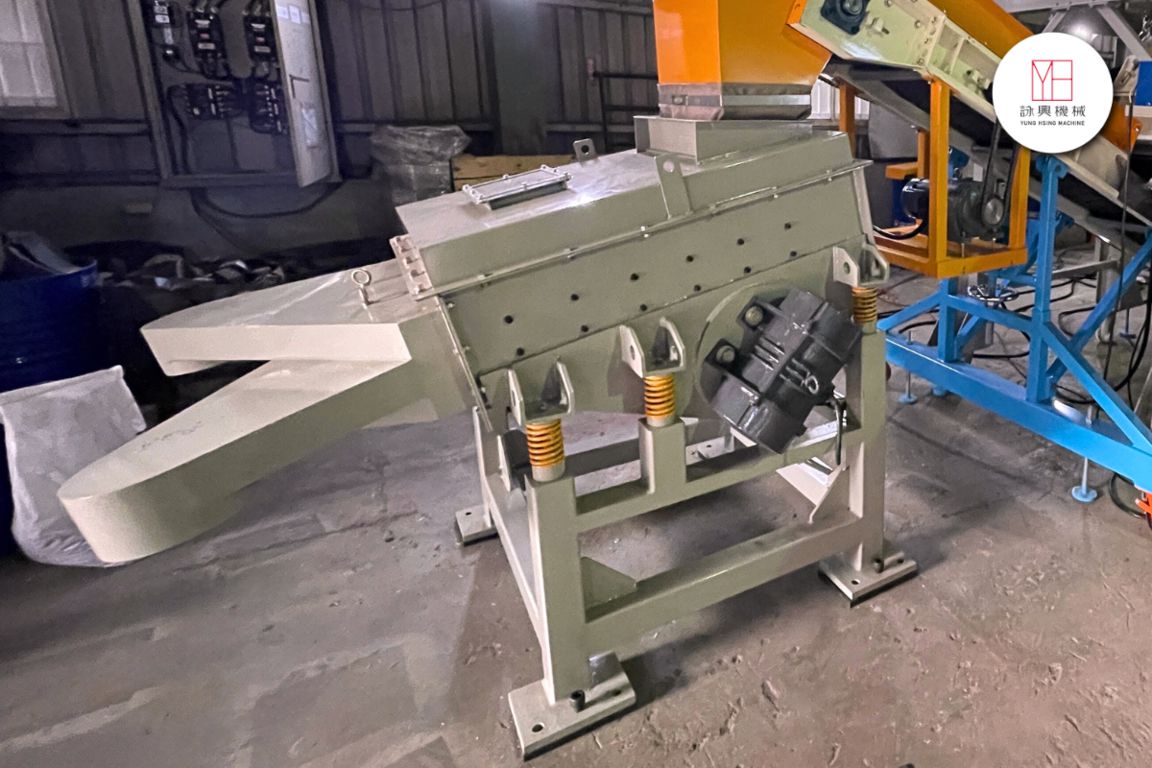

Rectangular Screening Machine: High‑Efficiency Linear Vibrating Screen for Recycling
A rectangular screening machine, also called a linear vibrating sieve, is designed to classify materials by size with high throughput and precision. Using dual vibration motors to generate linear motion, these machines separate oversize and undersize fractions while moving product across the screen surface. They handle tough recycling materials—laminated glass, cable granules, refractory brick chips and more—while meeting stringent hygiene and safety requirements.
How the Rectangular Screening Machine Works
| Stage | Description | Purpose |
|---|---|---|
| Feeding & distribution | Material is introduced onto the screening deck via a hopper or conveyor. A feed distributor spreads product evenly across the screen width. | Ensures uniform loading to maximize screening efficiency and prevent screen overload. |
| Vibration & stratification | Dual vibration motors create a linear motion that lifts and stratifies the material. Adjustable amplitude and frequency allow tuning for different particle sizes. | Promotes efficient separation of fines and coarse particles as they travel across the screen surface. |
| Separation & discharge | Particles pass through one or more screen meshes; undersize material falls into lower hoppers while oversize travels to the end discharge. Multi‑layer screens enable up to five fractions in a single pass. | Delivers precise particle size classification with high throughput. |
| Cleaning & maintenance | Screens feature quick‑change designs with hook‑style tensioning for easy removal and replacement. Dust‑proof, sealed structures prevent contamination and simplify cleanup. | Minimizes downtime and keeps equipment hygienic and safe for operators. |
Key Features & Advantages
- High efficiency and precision: Dual vibration motors provide linear motion that efficiently separates materials based on particle size, improving productivity and material handling.
- Customizable design: Inlet/outlet sizes, screen deck dimensions and machine height can be tailored to your production line. Multi‑layer configurations offer up to five screening stages for fine and coarse separation.
- Robust construction: A high‑mass, rigid frame and wear‑resistant screen mesh ensure stability and long service life. Heat‑treated meshes support single‑panel replacement or customized apertures as needed.
- Easy maintenance: Hook‑style tensioning systems and quick‑release clamps enable mesh changes in minutes. This reduces downtime and maintenance costs, keeping production running smoothly.
- Hygienic & safe: For food, pharmaceutical and chemical industries, the machine is designed to meet stringent hygiene standards. Sealed dust‑proof structures reduce pollution and improve workplace conditions.
- Energy‑efficient: Linear vibration requires less power than circular or gyratory motion, lowering operating costs and supporting sustainable production.
- Flexible screening options: Sloped designs maximize screening capacity in limited space, while linear designs combine high throughput with fine mesh screening, allowing the unit to act as a conveyor or feeder.
Applications
Rectangular screening machines are widely used in recycling and manufacturing sectors:
- Laminated glass screening: Separates the plastic interlayer from glass, improving reuse efficiency.
- Cable recycling: Segregates copper granules from plastic insulation to maximize recovery value.
- Particle size classification: Sorts powdered or granular materials to meet specific particle size requirements.
- Food and pharmaceuticals: Screens grains, powders and tablets while meeting hygienic standards.
- Chemical and mining industries: Classifies ores, sand, coal and gravel; ideal for handling fine and coarse materials.
- Agriculture & environmental protection: Separates feed grains, fertilizer and recyclable waste with high efficiency.
Integrated Solutions & Internal Links
Pairing the rectangular screening machine with other Yung Hsing equipment creates a complete resource recovery line:
- Pre‑shredding: Use a Twin‑Shaft Shredder – Heavy Duty or Compact Quad‑Shaft Shredder to prepare bulky waste before screening.
- Primary crushing: Feed oversize materials to a Powerful Crusher or Hammer Mill for size reduction before classification.
- Fine grinding: After screening, use a Micro Pulverizer or Random Pulverizer for ultra‑fine particles.
- Metal recovery: Combine with an Eddy Current Separator or Steel Wire Separator to remove non‑ferrous and ferrous metals.
- Density separation: Integrate a Gravity Separator to separate materials by density before or after screening.
Environmental & Operational Benefits
Our rectangular screening machine complies with modern environmental standards. Advanced vibration technology and sealed dust‑proof design reduce dust pollution, improve working conditions and minimize energy consumption. Flexible adjustment of screening fineness ensures optimum performance for varied materials, while low maintenance and quick mesh changes help control operating costs. Together, these benefits contribute to sustainable production and higher resource recovery.
Why Choose Yung Hsing
With decades of experience in recycling machinery, Yung Hsing designs rectangular screening machines that deliver reliability, efficiency and customization. Our high‑performance vibration motors, wear‑resistant meshes and modular designs meet industrial demands across recycling, food, pharmaceutical and chemical sectors. We offer tailored solutions, installation support and after‑sales service to ensure seamless integration into your production line.
The design of the rectangular vibrating screen complies with modern environmental protection standards. The advanced vibration technology and sealed dust-proof structure can effectively reduce dust pollution and improve the working environment. Its low energy consumption design not only reduces the company’s operating costs, but also helps companies achieve sustainable development goals.
