Printed Circuit Board Recycling Process: High‑Purity PCB Recovery System
Waste printed circuit boards (PCBs) are abundant in computers, smartphones, appliances and other electronic products. Each board contains a mixture of metals—copper, gold, silver and palladium—and non‑metallic materials such as plastics and fiberglass. To capture these valuable resources, recycling must separate metals from resin and fiberglass without releasing hazardous emissions. Traditional thermal methods (incineration or smelting) can result in resource losses and pollution. Mechanical recycling—combining shredding, crushing and physical separation—achieves metal purities exceeding 99%, making it the preferred route for environmentally responsible PCB recycling.
Overview of the PCB Recycling Process
The PCB recycling process typically follows three stages:
- Dismantling: An electronic component dismantling machine removes chips, capacitors and other components from the board, leaving a bare circuit board for further processing.
- Crushing & Pulverizing: The bare board is fed into a shredder or crusher to break it into 60 mm fragments. A granulator or hammer mill then reduces these fragments to particles around 20 mm. Mechanical crushing prepares the material for efficient separation.
- Separation: A series of separation technologies—magnetic, gravity, eddy current and electrostatic—classify and concentrate the metals. High‑voltage electrostatic separators exploit differences in electrical conductivity to segregate metals from non‑metals with recovery rates over 99%.
How Yung Hsing’s PCB Recycling System Works

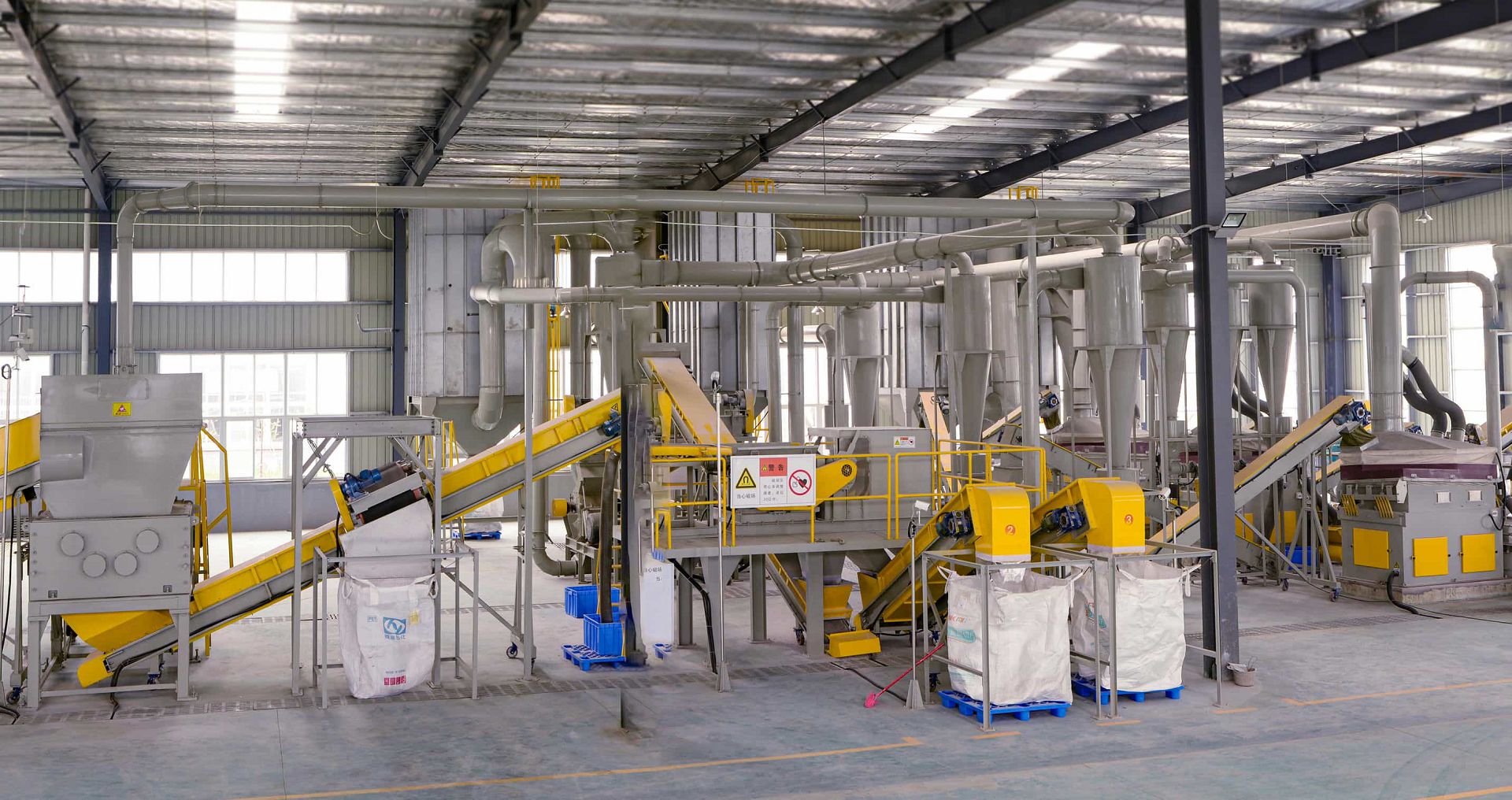

Yung Hsing’s PCB recycling system integrates robust machinery to automate each step of the process. The table below outlines our typical configuration:
| Stage | Equipment | Function | Internal Links |
|---|---|---|---|
| Pre‑shredding | Quad‑shaft or twin‑shaft shredder | Breaks down large circuit boards into manageable pieces for consistent feeding. | Twin‑Shaft Shredder – Heavy Duty, Compact Quad‑Shaft Shredder |
| Primary crushing | Powerful crusher or hammer mill | Crushes boards into smaller fragments, typically 20–60 mm, preparing them for milling. | Powerful Crusher, Hammer Mill |
| Pulverizing | Micro Pulverizer / Random Pulverizer | Further reduces particle size to liberate metal from resin and fiberglass. | Micro Pulverizer, Random Pulverizer |
| Magnetic separation | Drum magnet | Removes ferrous metals such as iron screws and steel components. | Steel Wire Separator |
| Eddy current separation | Eddy current separator | Separates non‑ferrous metals (copper, aluminium) from non‑metallic particles using induced currents. | Eddy Current Separator |
| Density & electrostatic separation | Gravity separator / Electrostatic separator | Classifies particles by density and electrical conductivity to achieve high‑purity metal and resin fractions. | Gravity Separator |
| Screening & dust control | Rectangular vibrating screen & dust collection system | Separates material by size and collects dust to ensure a clean, compliant operation. | Rectangular Vibrating Screen |
Key Features & Advantages
- High metal recovery: Mechanical crushing and electrostatic separation achieve metal recovery rates exceeding 99%, maximizing the value of copper, aluminium and precious metals.
- Enhanced purity: A combination of magnetic, eddy current, gravity and electrostatic separators ensures precise segregation of metals from resin and fiberglass, yielding clean output streams.
- Modular design: Pre‑shredders, crushers, pulverizers and separators are arranged in modules. Systems can be tailored to throughput requirements or integrated into existing lines.
- Dust‑free operation: Bag filters and enclosed conveying control dust and emissions, maintaining a clean work environment and compliance with environmental regulations.
- Energy efficiency: Mechanical processing uses less energy than thermal methods and avoids the resource losses associated with incineration.
- Safety and automation: Overload protection, interlocked covers and programmable controls provide safe and reliable operation with minimal labor.
- Customizable outputs: Interchangeable screens and adjustable separation parameters allow operators to produce different particle sizes or concentrates according to downstream needs.
Applications & Materials
Yung Hsing’s PCB recycling system handles a broad range of electronic waste:
- Consumer electronics: Computers, laptops, tablets, smartphones and wearables.
- Home appliances: Televisions, audio equipment, kitchen appliances and white goods.
- Industrial & automotive boards: Control boards from machinery, automotive ECUs and industrial electronics.
- Telecommunication & networking: Server boards, routers, switches and communication devices.
By reclaiming high‑value metals and clean resin powder, manufacturers reduce demand for virgin materials and divert hazardous e‑waste from landfills.
Integrated Recycling Solutions
Our PCB recycling equipment can be combined with other Yung Hsing systems for a full e‑waste recycling line:
- Bulky material reduction: Use a Twin‑Shaft Shredder – Heavy Duty or Compact Quad‑Shaft Shredder to pre‑shred complete devices such as printers or servers.
- Precision crushing: For other feedstocks, integrate a Powerful Crusher or Hammer Mill before the PCB line.
- Fine granulation: After metal recovery, residual plastic or resin can be processed with a Micro Pulverizer or Random Pulverizer to produce fine powders for reuse.
- Additional separation: Combine with Steel Wire Separator, Eddy Current Separator and Gravity Separator for comprehensive metal recovery.
With our modular systems, you can build a complete recycling line that scales to your production needs.
Environmental and Economic Benefits
Mechanical PCB recycling conserves natural resources and reduces environmental impact. Recovering metals from scrap boards lessens the need for mining and processing virgin ores. Dry, physical separation avoids chemical leaching and thermal smelting, minimizing emissions and energy consumption. High‑purity metal concentrates command strong market value, providing an economic incentive for sustainable e‑waste management.
Why Choose Yung Hsing
Yung Hsing Machinery has been engineering recycling systems for over three decades. We design machines with heavy‑duty construction, efficient energy use and reliable performance. Our team offers customization, installation and after‑sales support worldwide. Whether you need a stand‑alone PCB recycling machine or a fully integrated e‑waste processing line, we can tailor a solution that maximizes recovery, reduces environmental impact and meets your operational goals.
Get Started
Transform your e‑waste into valuable resources with a high‑purity PCB recycling system. Contact Yung Hsing today to discuss your printed circuit board recycling process requirements and explore our full range of industrial shredders, crushers and separators.
